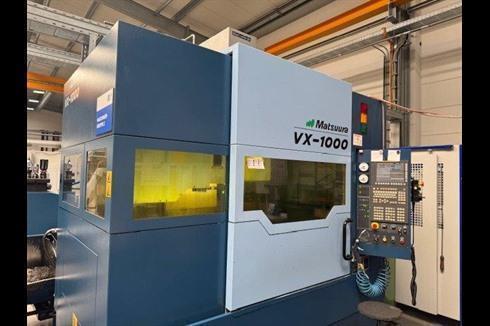

Matsuura - VX-1000

• Drucken
• Zu Favoriten hinzufügen

• FabrikatMatsuura
• TypVX-1000
• Lagernummer1143
• Baujahr2016

Technische Details

• Tischlänge1200 mm
• Tischbreite600 mm
• Längsachse X1020 mm
• Quer Y610 mm
• Vertikal Z610 mm
• Anzahl Werkzeugposition48
• Anzahl Paletten0
• CNC MarkeFanuc
• CNC Modell31 iB

Manufacturer                                                          Matsuura
Model                                                                      VX-1000
Year                                                                         2016

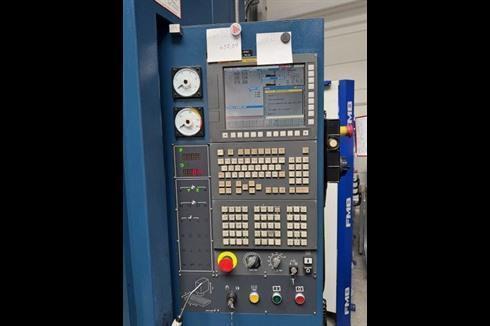

Control                                                                    Fanuc 31iB
Data:                  Table size                                                                1200 x 600 mm
Table load                                                               500 kg
Traverses               X/Y/Z                                      1020/610/610 mm
Rapids               X,Y/Z                                            40,40/36 m/min.

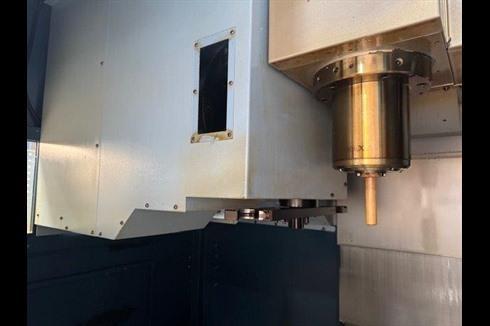

Spindle taper                                                           ISO 40
Spindle drive motor                                               18,5/15 kW AC
Spindle speeds                                                        40 – 15000 rpm
Tool taper                                                                BT-40 Big plus
Tool magazine positions                                        48 station
Tool diameter with/without adjacent tools           96/150 mm
Tool length                                                              350 mm
Tool weight                                                             10 kg
Machine dimension LxWxH                                 2,52 x 2,85 x 3,4 m
Machine Weight                                                     8.000 kg

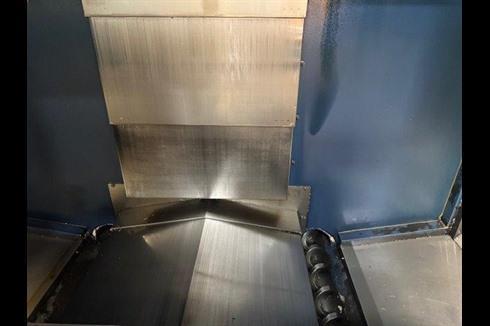

Equipment:       Chip conveyor, coolant through the spindle 20 bar, 8 extra M-Functions, Renishaw Probe OMP 60, Tool breakage control.

Händler: SCANTOOL AB
