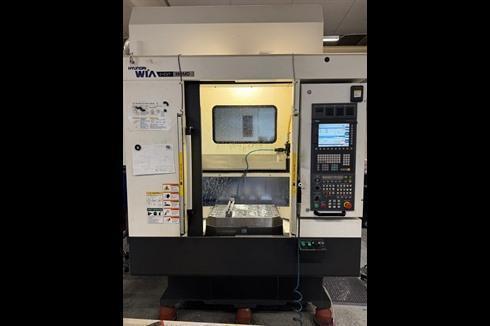

Hyundai Wia - i-cut 380 MD

• Drucken
• Zu Favoriten hinzufügen

• FabrikatHyundai Wia
• Typi-cut 380 MD
• Lagernummer1146
• Baujahr2018

Technische Details

• Tischlänge650 mm
• Tischbreite400 mm
• Längsachse X560 mm
• Quer Y360 mm
• Vertikal Z480 mm
• Anzahl Werkzeugposition20
• Anzahl Paletten2
• CNC MarkeSiemens
• CNC Modell828 Chop mill

Make                                                                       Hyundai Wia
Model                                                                      i-Cut 380 MD
Year of manufacture                                            2018

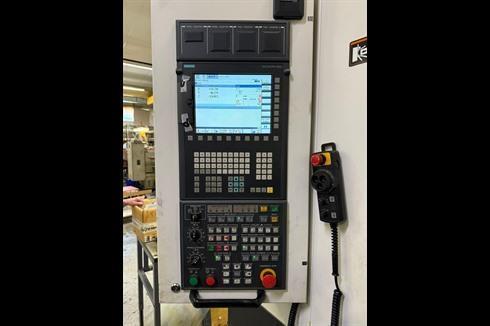

Control system                                                      Siemens 828 chop-mill and 3D simulation
Pallets                                                                     650x400 mm
Pallet load                                                              250 kg
Traverses          X/Y/Z                                            560/360/480 mm
Rapid feed       X/Y/Z                                            50/50/56 m/min
Spindle speed                                                        24,000 rpm
Spindle power                                                       10.5/8 kW
Tool taper                                                               BT 30 Big plus
Number of tools in the magazine                     20 pcs.
Machine dimensions LxWxH                             2.0x2.7x2.85 m
Length: X-way                                                        2.0 m
Width incl. chip conveyor                                   4.1 m
Machine weight                                                    5200 kg

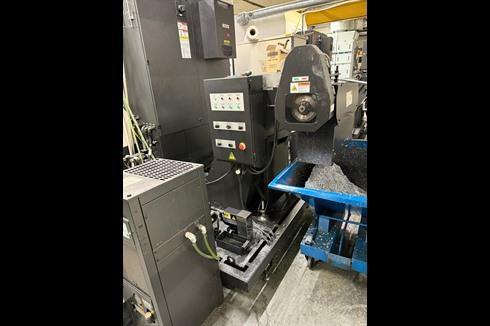

Equipment: Chip conveyor with drum filter, swivel, pallet changer, Fixture plate with reference holes. We have one more machine from 2013

Händler: SCANTOOL AB
