Tos - SUI 80

  • ProducentTos
  • Typ / ModelSUI 80
  • ID Numer7421
  • Rok produkcji2012
  • Witryna internetowaSUI 80

Dane techniczne

  • Wznios klow800 mm
  • Rozstaw klow3000 mm
  • Przelot wrzeciona92 mm

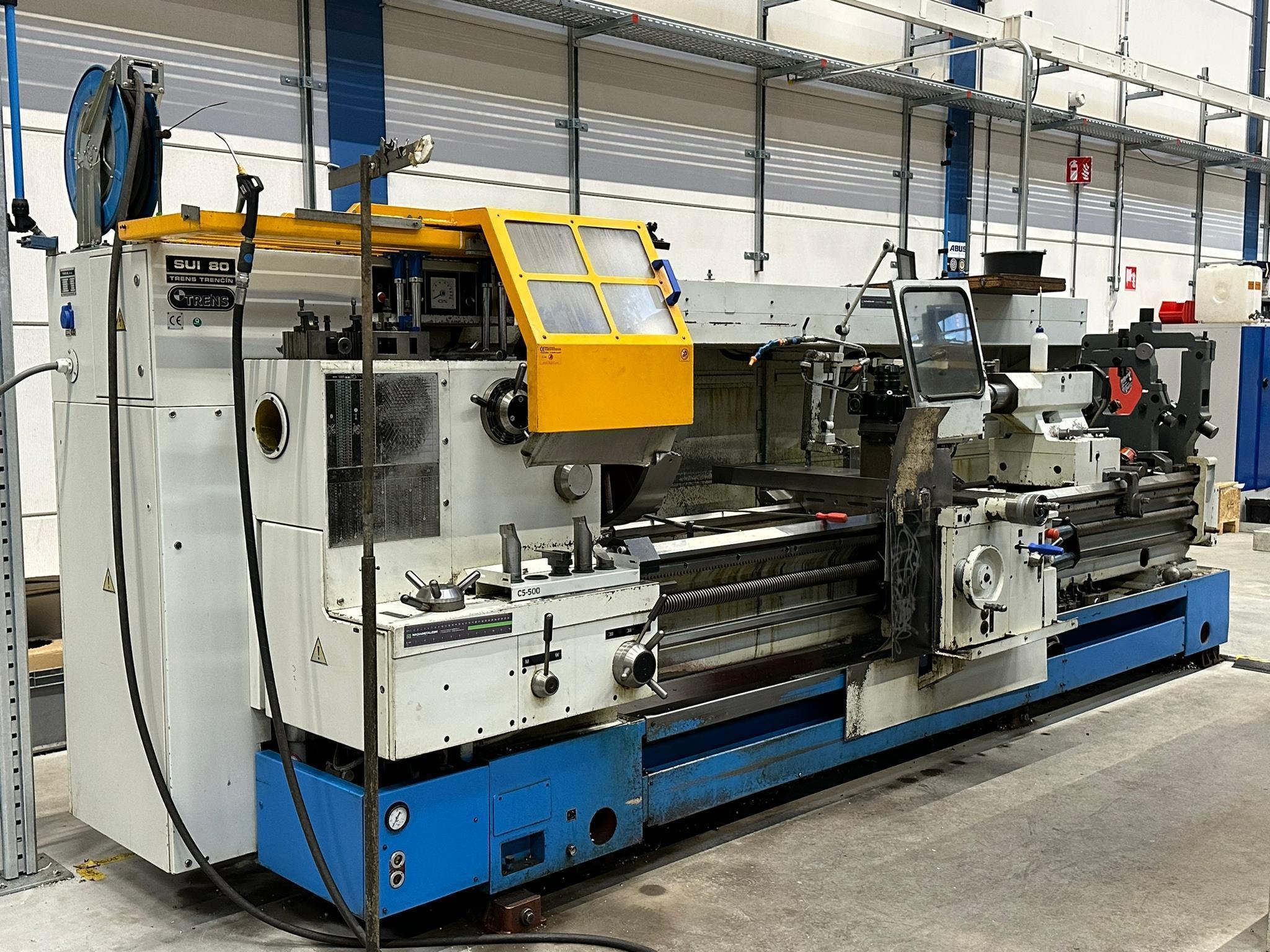

Centre latheTOS TRENS - SUI 80

Swing over bed Ø:        800mm
Swing over cross slide Ø:520mm
Swing in the gap Ø:      870mm
DBC Turning Length:      3000mm
Gap length:              320mm
Spindle bore:            92mm
Spindle power:           15kW
Bed width:               550mm
Tailstock spindle Ø:     110Ø
Stroke pinole:           210mm
Spindle taper:           6Mk
Speeds / ranges:         3200Rpm
Feed rate X-Axis:        2400mm/min.
Feed rate Z-Axis:        4800mm/min.
Length:                  5100mm
Width:                   1570mm
Height:                  1700mm
Weight:                  5060kg

SUI 80 is a lathe characterized by tough construction and highly rigid bed which allows its use for most challenging turning operations in piece and small-lot production. Thanks to its versatility it is suitable for maintenance and repair divisions as well.
Most important features:•High output at high cutting force•Easy maintenance•Long lifetime•Low operating costs•Easy and ergonomic control•High turning precision

Handlowiec: MACH4METAL BV

MACH4METAL BV
Zapytaj o cenę
