YCM - V-188B

  • BrandYCM
  • Type/ModelV-188B
  • Stock Number8657
  • Year2001
  • WebsiteV-188B

Technical details

  • Table length2000 mm
  • Table width860 mm
  • Longitudinal X1800 mm
  • Cross Y860 mm
  • Vertical Z700 mm
  • Positions ATC40
  • Positions APC1
  • CNC BrandFanuc
  • CNC Modelx

3-axis CNC machine (VMC)YCM Supermax - V-188B
MACH-ID 8657
Make: YCM Supermax
Type: V-188B
Control: Fanuc 18-M
Year: 2001

Rigid tapping ( direct tapping)
Golden SUN 321R 4e Axis (200 chuck)  with Tailstock Mk-2
Automatic tool length measuring
Mehanite box guideways


X - Travel:                  1800mm
Y - Travel:                  860mm
Z - Travel:                  700mm
Table Length:                2000mm
Table Width:                 860mm
Table load:                  2000
Feed rate X-Axis:            15000mm/min.
Feed rate Y-Axis:            15000mm/min.
Feed rate Z-Axis:            12000mm/min.
Spindle Taper:               50ISO/Bt/Mk
Power on spindle:            18,5kW
Speeds / ranges:             6000Rpm
ATC / revolver:              40

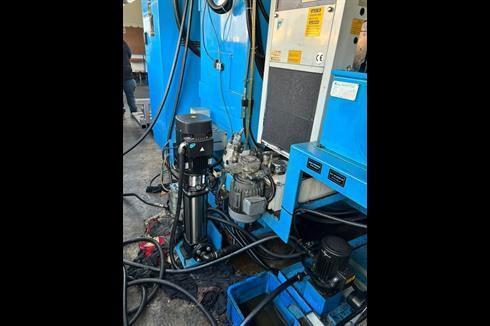

Coolant through spindle / Bar:20
Number of controlled axis:   3 + 1
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      4900mm
Width:                       4100mm
Height:                      3220mm
Weight:                      17000kg

Dealer: MACH4METAL BV

MACH4METAL BV
Price request
