Mazak - Qui

  • FabrikatMazak
  • TypQui
  • Lagernummer7004
  • Baujahr2014

Technische Details

  • Drehdurchmesser420 mm
  • Drehlänge2000 mm
  • Anzahl Werkzeugposition12
  • Anzahl Werkzeugposition12
  • Anzahl gesteuerter Achsen4
  • CNC MarkeMazatrol
  • CNC Modell Mazatrol Matrix Nexus

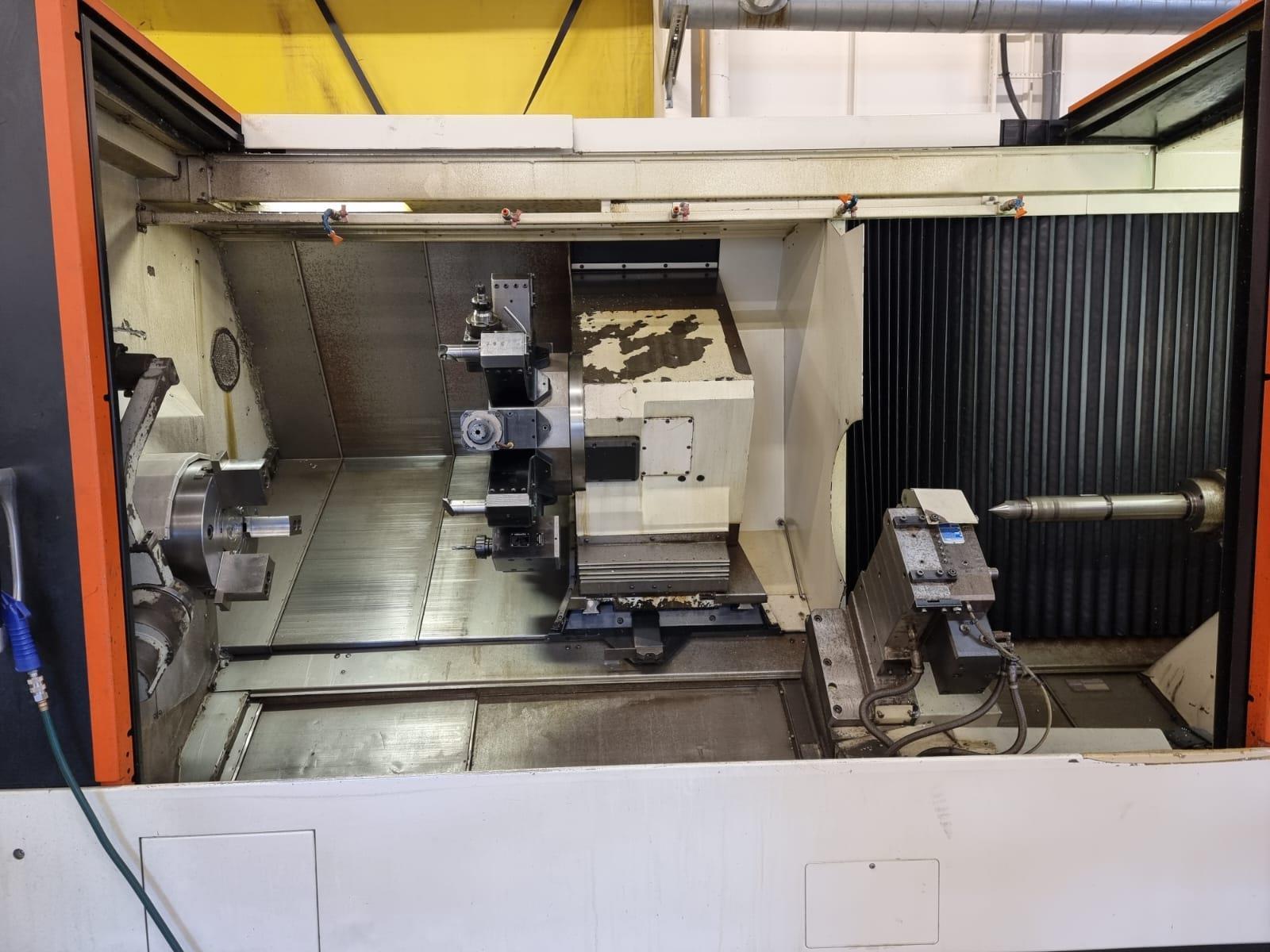

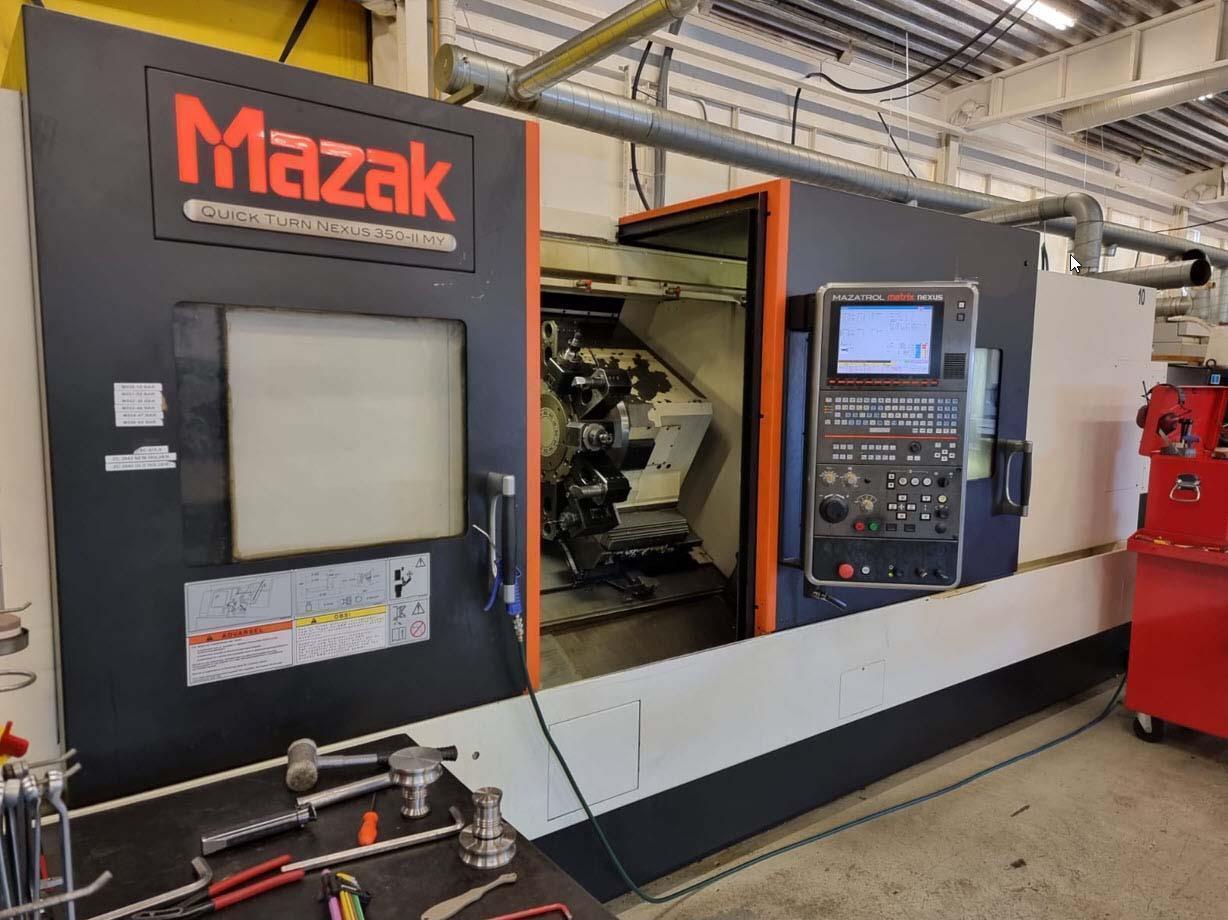

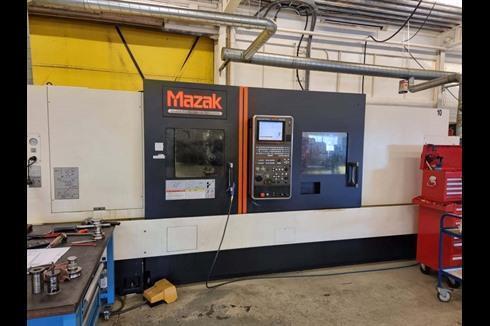

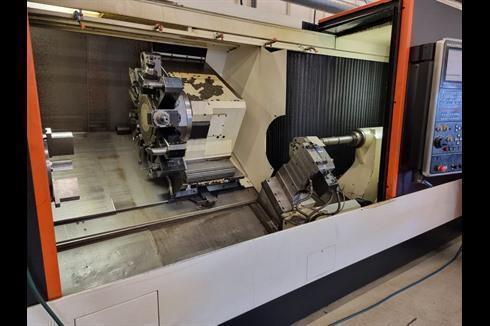

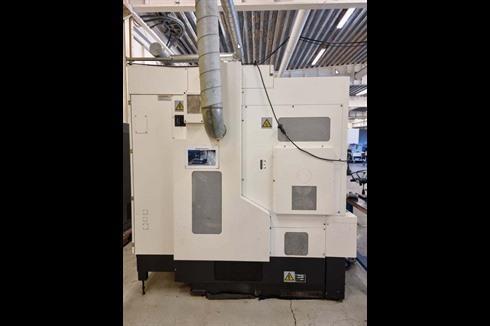

CNC turning lathe MAZAK - QUICK TURN NEXUS 350-II MY CNC Lathe Ø 420 x 2.000 mm with C & Y Axis 7004 = Mach4metal

Make: MAZAK
Type: QUICK TURN NEXUS 350-II MY

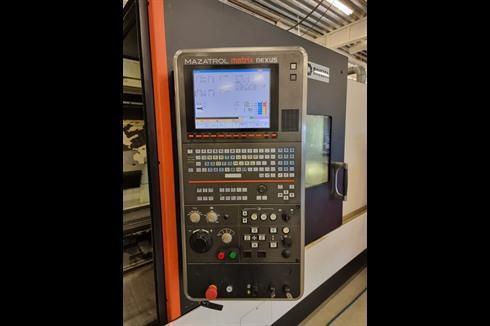

Control: Mazatrol Matrix Nexus

incl SMW Autoblock steady rest
incl. Radial & Axial driven tools
incl. Tool eye

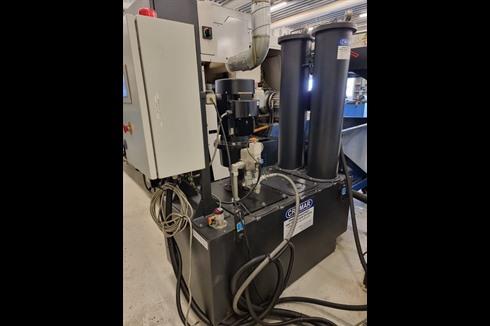

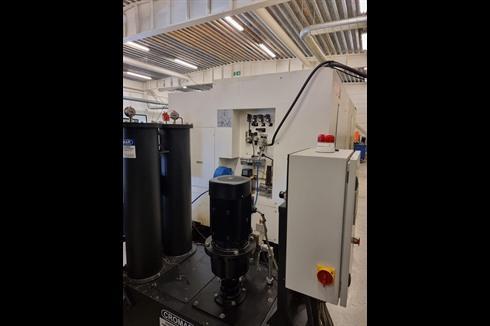

incl. CROMAR Coolant & Chip conveyor
Under power in Germany
Max. turning Ø: 420mm
X-Axis:         260mm
Y-Axis:         100mm
Z-Axis:         2.000mm
Spindle bore:   110mm
Speedrange:     2200Rpm
Spindle power:  30kW
ATC / revolver: 12
Speed live tools: 4000Rpm

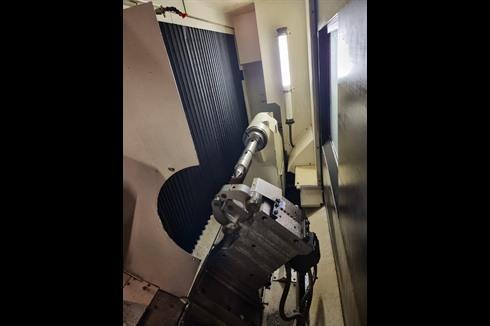

Pinole taper:   5Mk
Stroke pinole:  185mm
Length:         7.000 mm
Width:          2.800 mm
Height:         2.800 mm
Weight:         11.300 kg


The QUICK TURN NEXUS 350-II MY CNC Turning Center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small.
As an (MY) configuration, the machine features milling capability and Y-axis functionality along with a standard through-hole chuck package, and integral turning spindle motor to process a wide range of medium or larger diameter parts in a single setup.For fully automated operations, the machine can be outfitted with a bar feeder or gantry robot loader.
Plus the machine comes equipped with the Matrix Nexus CNC Control. Featuring, both Mazatrol conversational programming and EIA-ISO programming, standard. Any way you look at it, QTN-350MSY provides an excellent way to improve your throughput and profit potential.
